Micro injection molding machine Compact frame, rugged performance
Micro Injection Molding Machine Parameters
The M Series Micro Injection Molding Machines are compact, lightweight precision equipment engineered for the molding of small plastic products. Boasting a minimal footprint and flexible placement, they support direct desktop deployment for quick commissioning and immediate production.
Equipped with a robust intelligent injection molding control system, the machines deliver full-process automated operation. Operators only need to configure basic process parameters including temperature, pressure, injection speed and number of cycles, and the system will autonomously complete the entire molding sequence: plasticizing, clamping, injection, holding pressure, cooling and mold opening, ensuring an efficient and streamlined production workflow.
Featuring energy-efficient and low-noise operation, the machines deliver low running costs and exceptional cost-performance ratio. They are widely deployed across diverse applications including scientific research prototyping, academic teaching and training, new product creative development, and small-batch production of small plastic components, making them the ideal precision plastic molding solution for laboratories, educational institutions and small-to-medium-sized manufacturing enterprises.
This series is offered in three distinct specifications. Please refer to the detailed parameter table below to compare performance and configurations, and identify the machine model that best aligns with your specific application requirements.

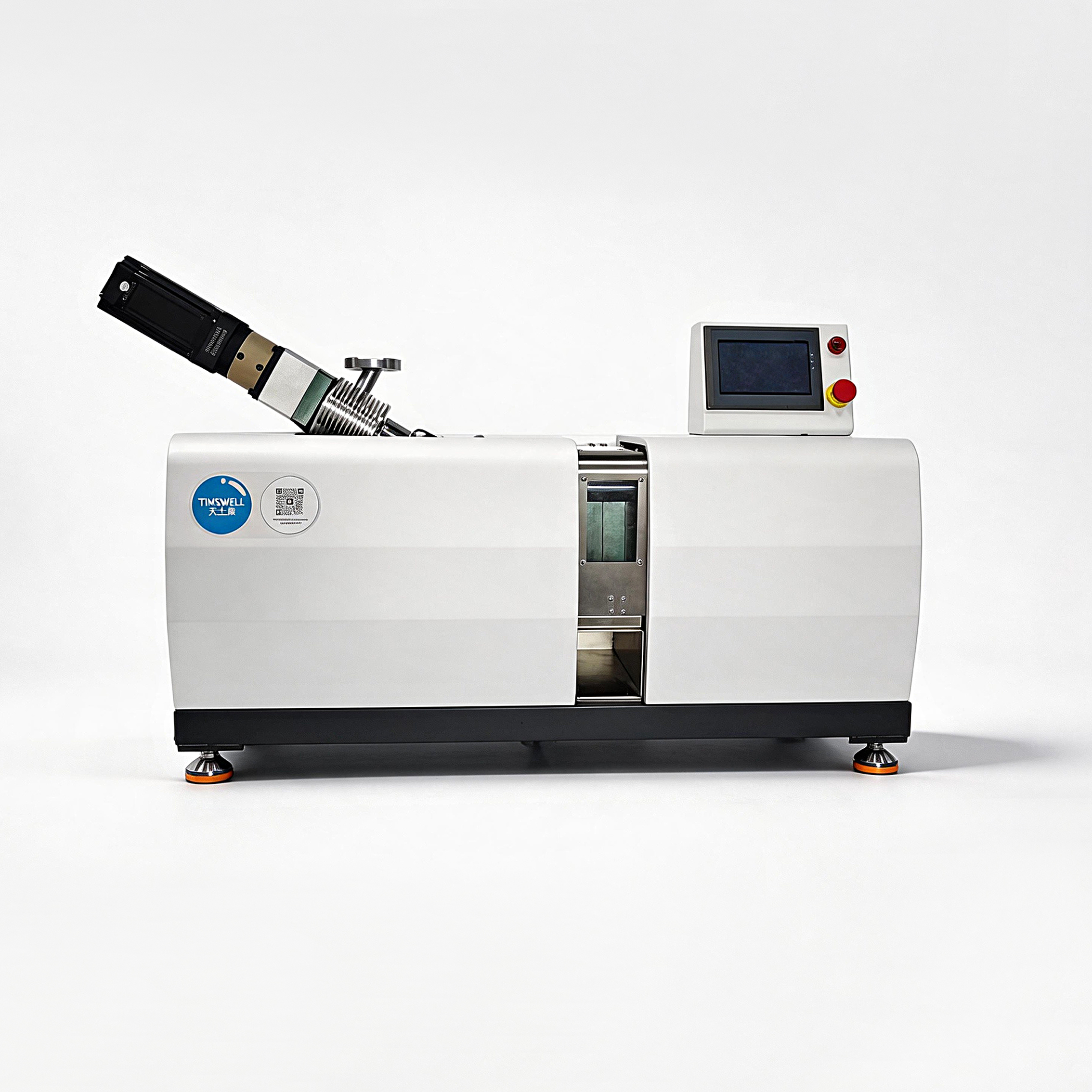

| Item | Parameters | Unit | M05 | M08 | M15 |
|---|---|---|---|---|---|
| Injection Part | Operating Temperature Range | ℃ | 350 | 450 | 450 |
| Screw Diameter | mm | 20 | 25 | 25 | |
| Screw L/D Ratio | L/D | 18 | 20 | 20 | |
| Plunger Diameter | mm | 16 | / | 20 | |
| Effective Plunger Length | mm | 50 | / | 60 | |
| Theoretical Injection Volume | cm3 | 25 | 32 | 32 | |
| Injection Weight | g | 10 | 20 | 30 | |
| Plasticization Capacity | g/s | 8 | 10 | 15 | |
| Injection Rate | g/s | 5 | 10 | 10 | |
| Heating Temperature Zones | pcs | 5 | 4 | 6 | |
| Injection Pressure | MPa | 80(≈160MPa) | 150 | 160(≈510MPa) | |
| Screw Speed | rpm | 50 | 50 | 50 | |
| Clamping Part | Clamping Force | kN | 50 | 80 | 150 |
| Mold Opening Stroke | mm | 90 | 150 | 150 | |
| Distance Between Tie Bars (W×H) | mm | 140*140 | 200*200 | 200*200 | |
| Maximum Mold Thickness | mm | 120 | 150 | 150 | |
| Minimum Mold Thickness | mm | 80 | 100 | 100 | |
| Ejector Stroke | mm | 20 | 30 | 30 | |
| Ejector Force | kN | 20 | 30 | 30 | |
| Number of Ejector Pins | pcs | 1 | 1 | 1 | |
| Mold Locating Hole Diameter | mm | 52 | 62 | 62 | |
| Motor Power | kW | 1.3x3台 | 2.0x3台 | 2.0x3台 | |
| Electric Heating Power | kW | 1.5 | 2.5 | 2.5 | |
| General Specifications | Overall Dimensions (L×W×H) | mm | 1080*420*720 | 1260*480*580 | 1300*480*800 |
| Net Weight | kg | 180 | 400 | 480 |

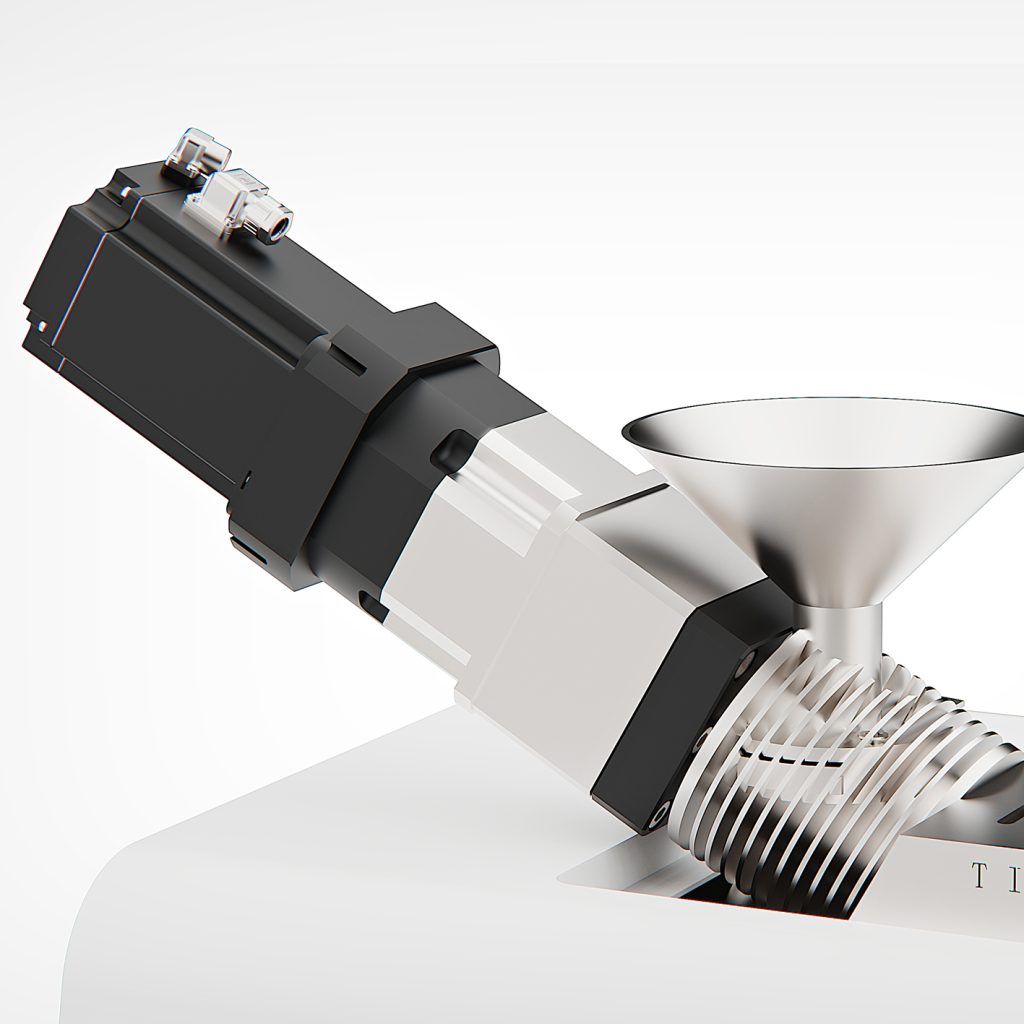

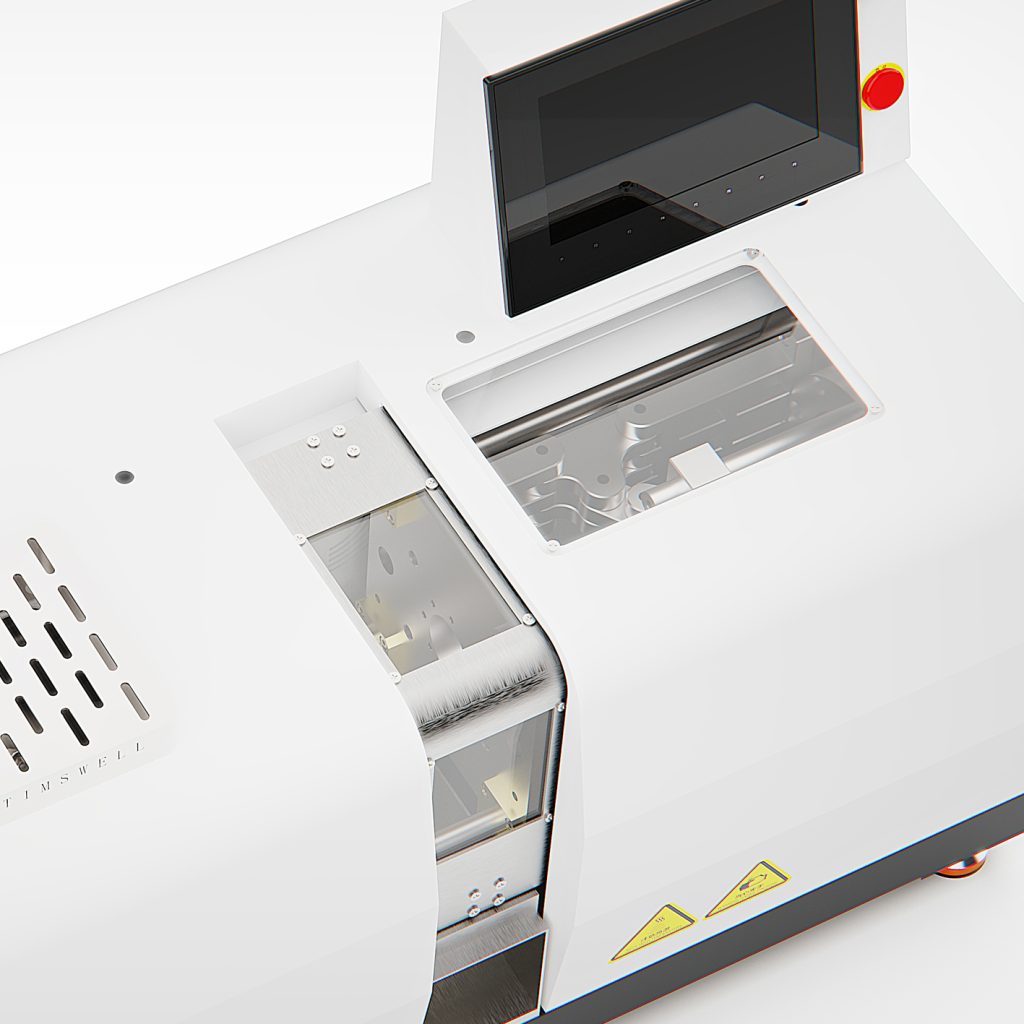

Micro Injection Molding Machine Features
- Compact design and space-saving.
- Stainless steel body and hard anodized aluminum frame structure.
- Fully electric water-free cooling system.
- Full-automatic precision sensor.
- Injection speed control ensures cavity filling rate.
- Electronic temperature control system, temperature control adjustment.
- The touchscreen facilitates operation and control, and features automatic cyclic counting.
- Each injection cycle does not exceed 15 seconds (the mold opens and ejects the part every 15 seconds).
- Simple operation, low mold opening cost and low operation cost.
